Get in Touch NowPlisse Fly Screen Systems
27mm and 18mm Normal
This series is especially preferred for doors, with the mesh folding inside the frame on one side or both sides.The pleated cassette is directly and easily fixed to the door or window frame using screws in the mounting holes located on the corner brackets.

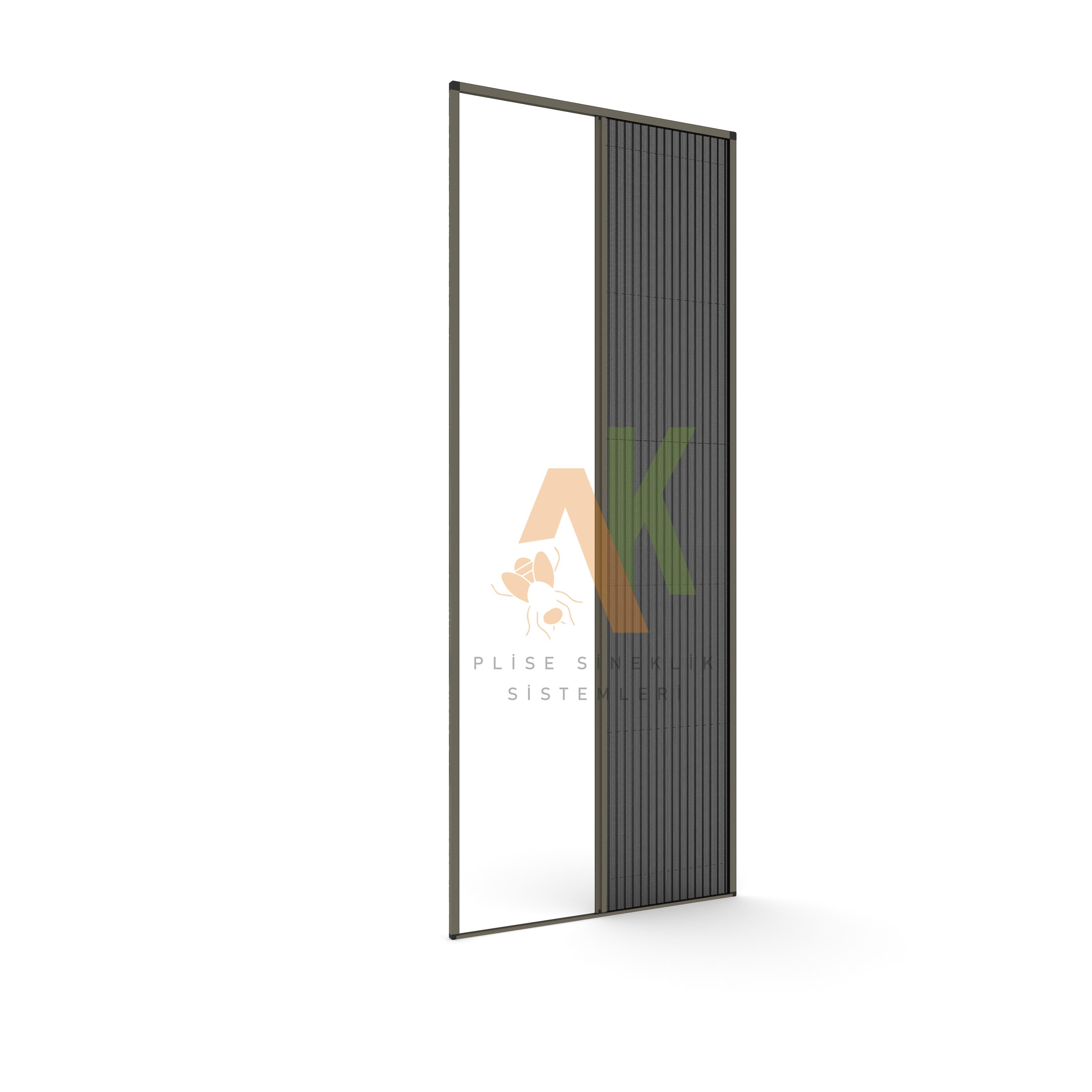

27mm and 18mm Threshold-less
Typically used in door fly screens. It prevents tripping in high-traffic areas, does not deform due to its
hardness, and provides long-lasting use. Ideal for use in gardens and terrace exits.
Available in three colors: White, Anthracite Gray, and Anodized.
27mm and 18mm Window

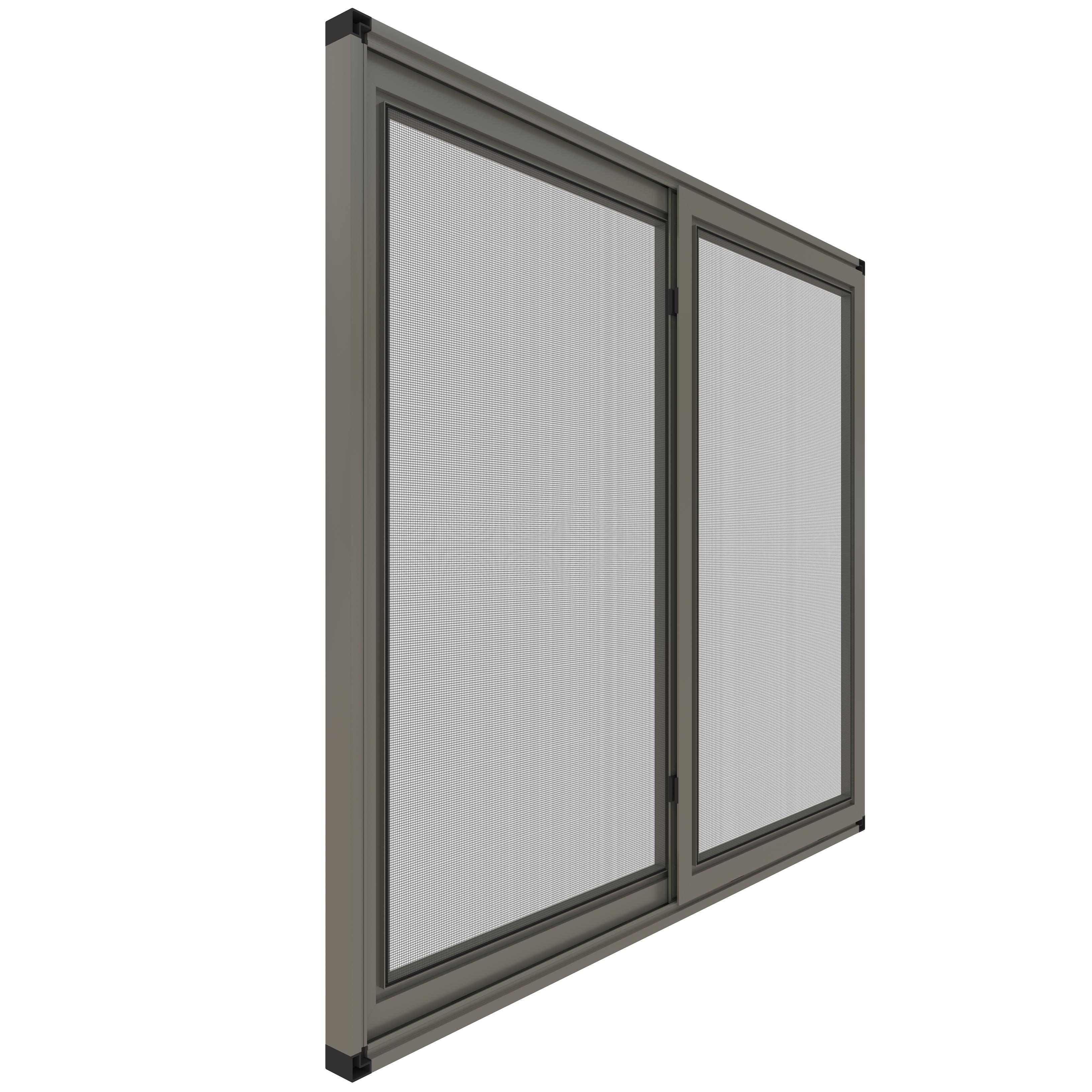

27mm and 18mm Double Window
27mm and 18mm Door
27mm and 18mm Double Door
18mm Internal Mount Series
The internal mount series does not require any drilling during installation, making it a practical solution for situations with limited space. It is applied between the window frame and window sash using metal or plastic clips. It can be easily inserted and removed. It cannot be applied if the window sash has a drip edge.
27mm Wing Profile
Wing Profile: This profile, which is mounted on the ends of the frame profile, allows the pleated mesh to move thanks to its special design. It traps the mesh inside, ensuring a longer lifespan.
27mm Frame Profile
The aluminum extrusion is done hot. During production, 6063 series billets are used. The billets are
heated to 420-520°C, molds are heated to 450°C, and the profile coming out of the press is above 500°C.
The profile is cooled, cold-stretched, and cut to the desired length. Then, it is heat-treated to
strengthen the profiles. During this process, the profiles are kept at 185°C for 5 hours. Strengthened
profiles are then sent to the powder coating line, anodizing line, wood transfer line, or mechanical
processing line as per customer request. After the necessary processes are applied, the profiles are
ready for shipment.
The frame profile: With a depth of 27 mm and a front face width of 39 mm, it provides a solid
appearance. It can be considered the main profile of the pleated fly screen. It forms the skeleton of
the pleated fly screen by joining corner brackets.
Mesh 17 and 19mm
Mesh 14 and 16mm
Mesh 27mm
All profiles are offered in standard white, gray, and brown colors. Special colors can be produced as
requested. Contact us for detailed information.
The product features: Mesh is applied to the frame with a special system. The frame is produced from
aluminum profiles. The mesh can be replaced easily and does not require special cleaning products. It
can be cleaned with a dry cloth or with a vacuum cleaner with a dusting brush.
